Thin aluminum strips for sale

  Thin aluminum strips are finished products of aluminum roll obtained by pressing aluminum ingot, and then cut into strips of required width by longitudinal shear unit according to the needs of use. Basically, the alloy status of each grade can be processed into aluminum strip, among which the commonly used are: 1050, 1060, 1100, 3003, 3004, 5052, 8011, etc. The common states are o state and H state. O is the soft state and H is the hard state. O and h can be followed by numbers to indicate the degree of hardness and the degree of annealing.

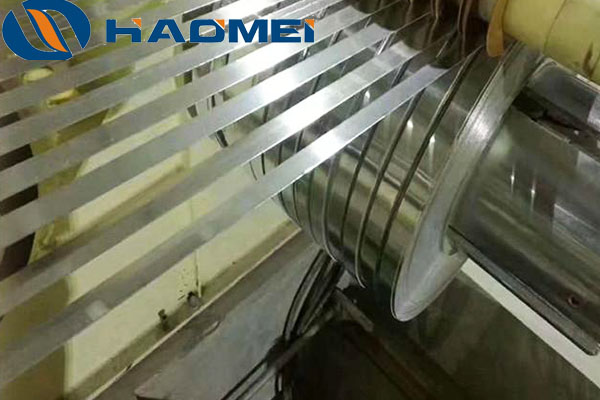

thin aluminum strips

  Specifications of our thin aluminum strips for sale are as below.

  Thickness 1 (unit: mm): 0.01, 0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.1

  Thickness 2 (in mm): 0.11, 0.12, 0.13, 0.14, 0.15, 0.16, 0.17, 0.18, 0.19, 0.2

  Width (unit: mm): 100150200250300350400450505506006507007508008509009501000

  Hardness: hard, soft; deep drawing soft material; hardness: HV 30-580 degrees; Vickers (HV) 180-590; hardness expression (HV, HRB, HRC).

  Hardness status: cold rolled ANN, 1 / 4, 1 / 2h, 3 / 4h, h, eh, sh

  Surface: cold rolled 2BB (bright surface), 2B (fog surface), BA (bright surface), HL (drawing surface), HD (drawing), 8K mirror surface,

  Flatness: ≤ 2%;

  Material: 3003, 3103, 3004, 3005, 3105, 1070, 1060, 1050, 1030, 1100, 6063

  It’s usually hard to divide thin aluminum strips by application, for even strips for the same use might vary in thickness a lot. The aluminum strip for transformers, for example, is usually of 1060 O state, but its thickness ranges between 0.08mm and 3.00mm. 0.08mm is really thin, but 3.0mm is not so thin at all. Therefore, it’s more acceptable to offer as more details as possible while asking for a quotation from your suppliers.
